An air-cooled laser welding machine with an integrated nitrogen generator is a portable all-in-one system. It uses air for cooling and a built-in unit to produce nitrogen for welding—this prevents oxidation to boost weld quality. The air-cooling design also makes it compact, lightweight and low-maintenance, no external water chiller needed.

If you want to know more about our machines or need any help , please send email to sales@xc-laser.com
Inquire
Air Cooling Welding Machine with Integrated Nitrogen Generator
Air Cooling Welding Machine with Integrated Nitrogen Generator

Product Specifications

ModelXC800FXC1200FXC1500FXC2000F
Laser Power800W1200W1500W2000W
Max Total Power2.5KW3KW3.5KW4.5KW
Wire Diameter0.8-1.0mm0.8-1.2mm0.8-1.6mm0.8-1.6mm
Max Welding ThicknessSS2mm3mm4mm5mm
CS2mm3mm4mm5mm
AL2mm3mm3.5mm4mm
GI2mm3mm4mm5mm

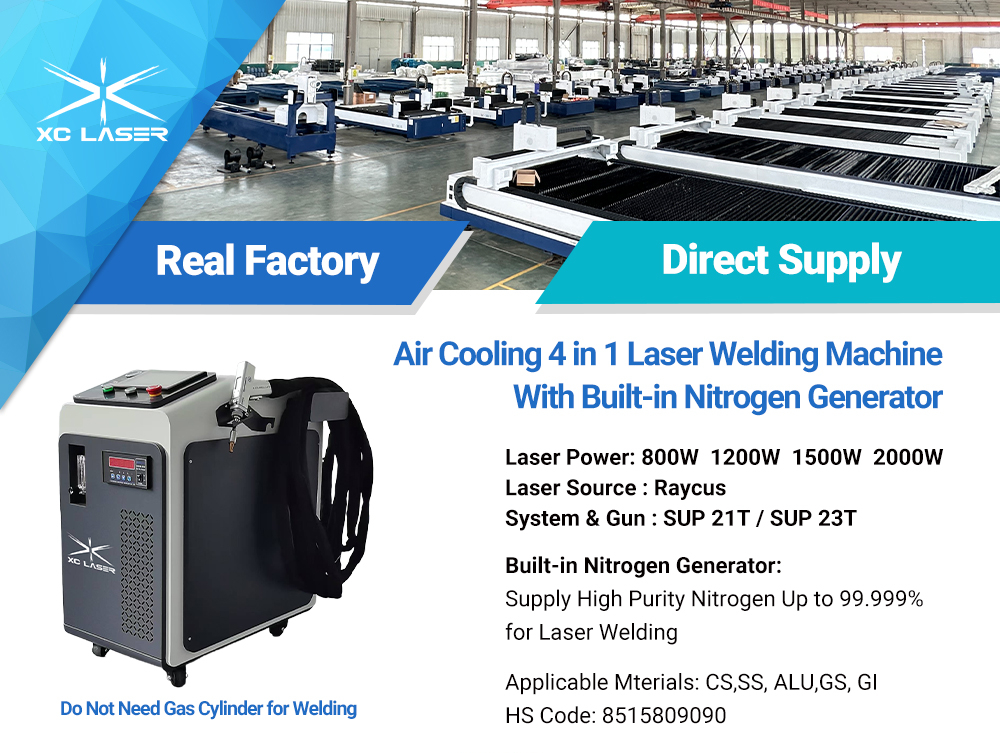

Air Cooling Laser Welder with Nitrogen Generator
00001 - 副本 (2)
No Gas Cost

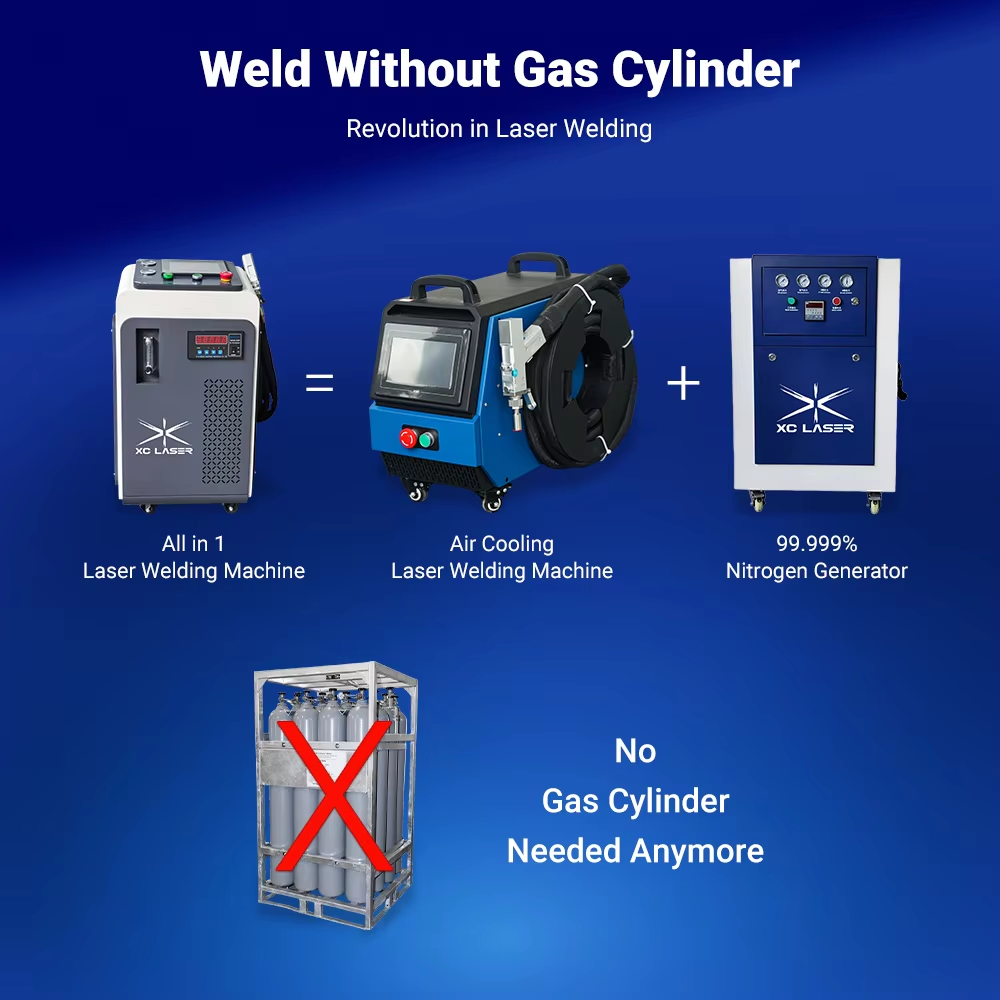

Without Gas Cylinder

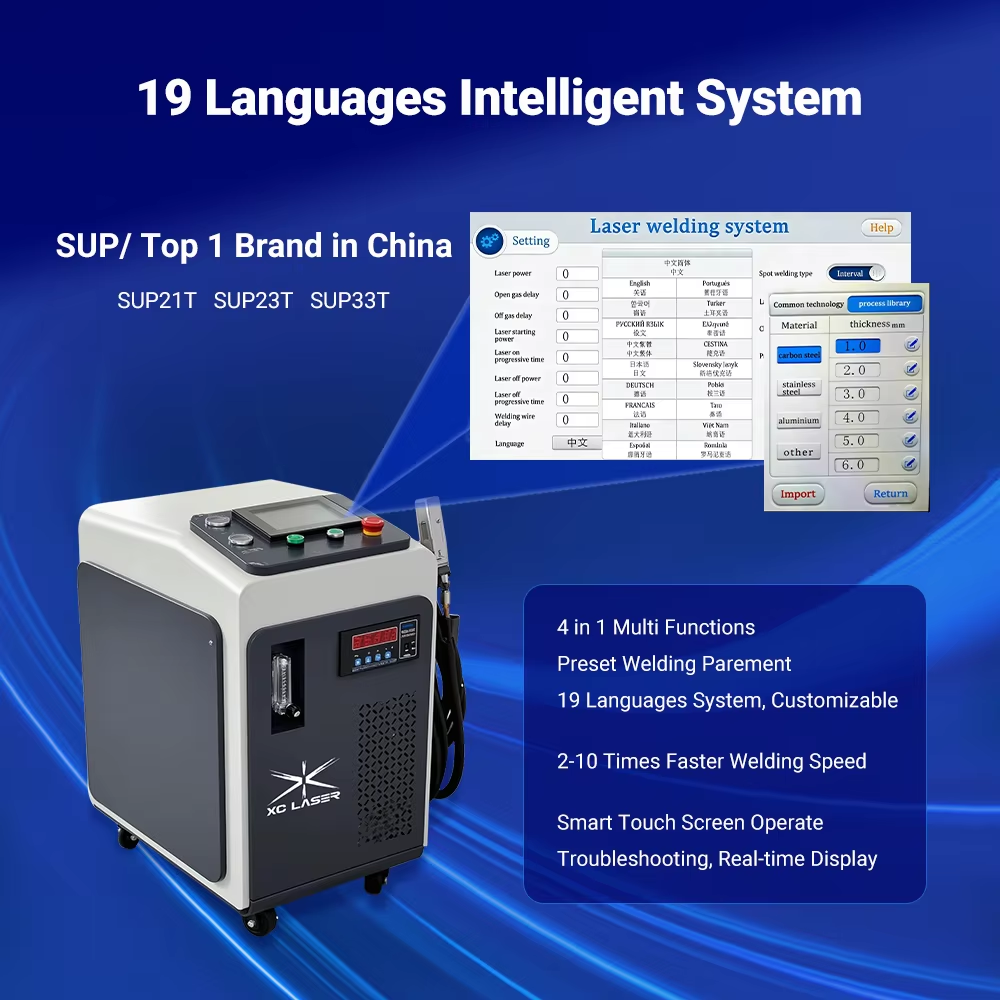

System

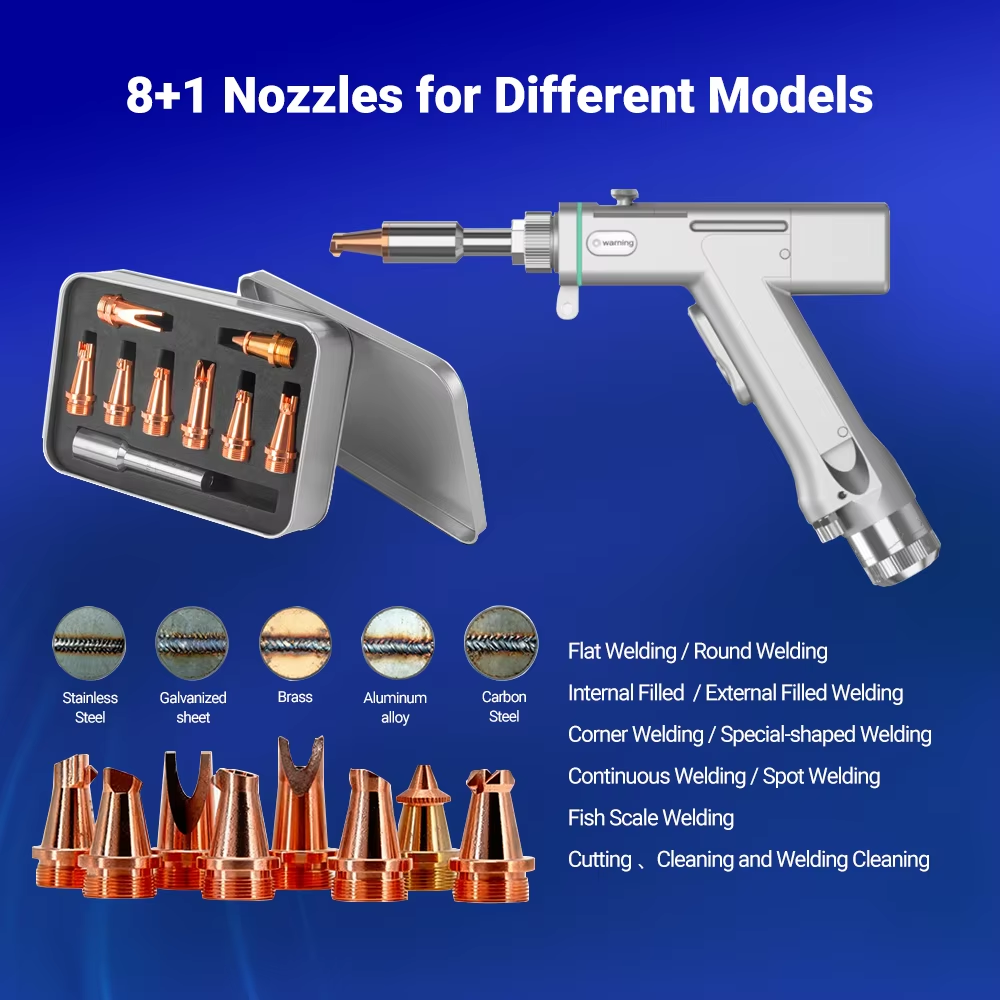

8+1

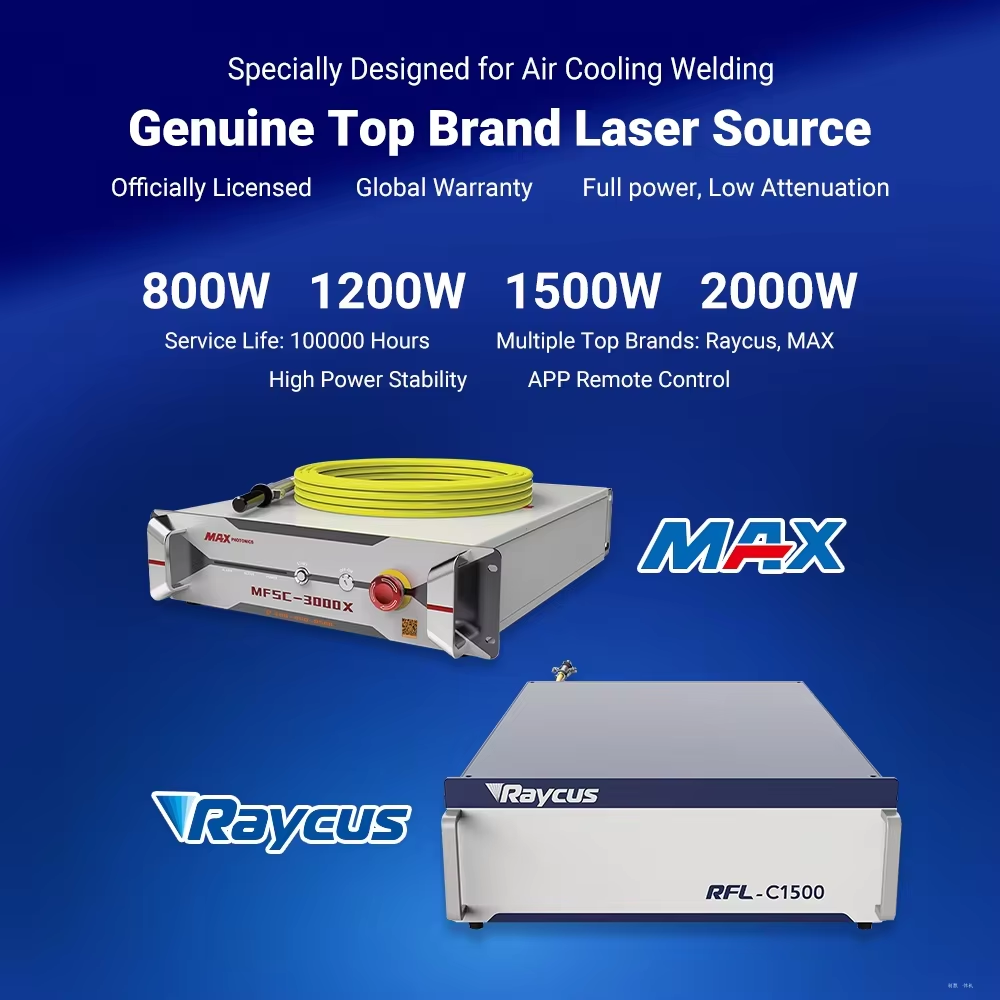

Air Laser Source
WPS拼图3
2e73ac8e-59c3-4191-9c52-25568408a4b2
Jinan Xing Chuang Laser Equipment Co., Ltd (XC-Laser) ,located in Jinan City , China's largest laser equipment manufacturing base.
With over 15 years of experiences , we now specialize in the research, design, and production of laser equipment, and mainly focus on Laser Cutting Machine and Laser Welding Machine .
With own R&D team , metal processing workshop and assebly worshop , from the very begining of the machine design to final assemble , all details under our own control .
We also offer different configrutions of the machine to meet clients' devers needs and different markets .
We have CE , ISO ect. certificate and offer OEM ODM services
XC-Laser , is a laser equipment manufacturer you can trust.
Our factory
Exhibition
Certificate
We provide our products with CE, FDA and other certifications, and we hold multiple patents.
