This is a device we have specially developed for laser welding.
It produces high-purity nitrogen by filtering air to supply laser welding operations.
This is a revolution in laser welding work—there is no longer a need to purchase gas cylinders for welding.
It greatly reduces costs, and the investment can generally be recouped in just a few weeks.

If you want to know more about our machines or need any help , please send email to sales@xc-laser.com
Inquire
Nitrogen Generator
Nitrogen Generator

Product Specifications

Main Specification
ModelN2-T1Power80W
Nitrogen Purity99.999 %VoltageAC 220V 50/60Hz
Nitrogen Flow1.1 Nm3/hNitrogen Dew Point-40-70℃
Air Intake8mm / Quick ConnectorAir Outlet8mm / Quick Connector
Air pressure（Compressor output pressure）0.7 - 0.9 MpaNitrogen Pressure0.1-0.4 Mpa
Net Dimension325*540*710mmNet Weight 70 Kg
Packing Dimension 400*600*800mmGross Weight 85Kg
004 制氮机
e96e07c3-fae1-4589-8f93-8beffd9b037f
2874b109-cc33-4d5c-87a4-dedfd5b474fd

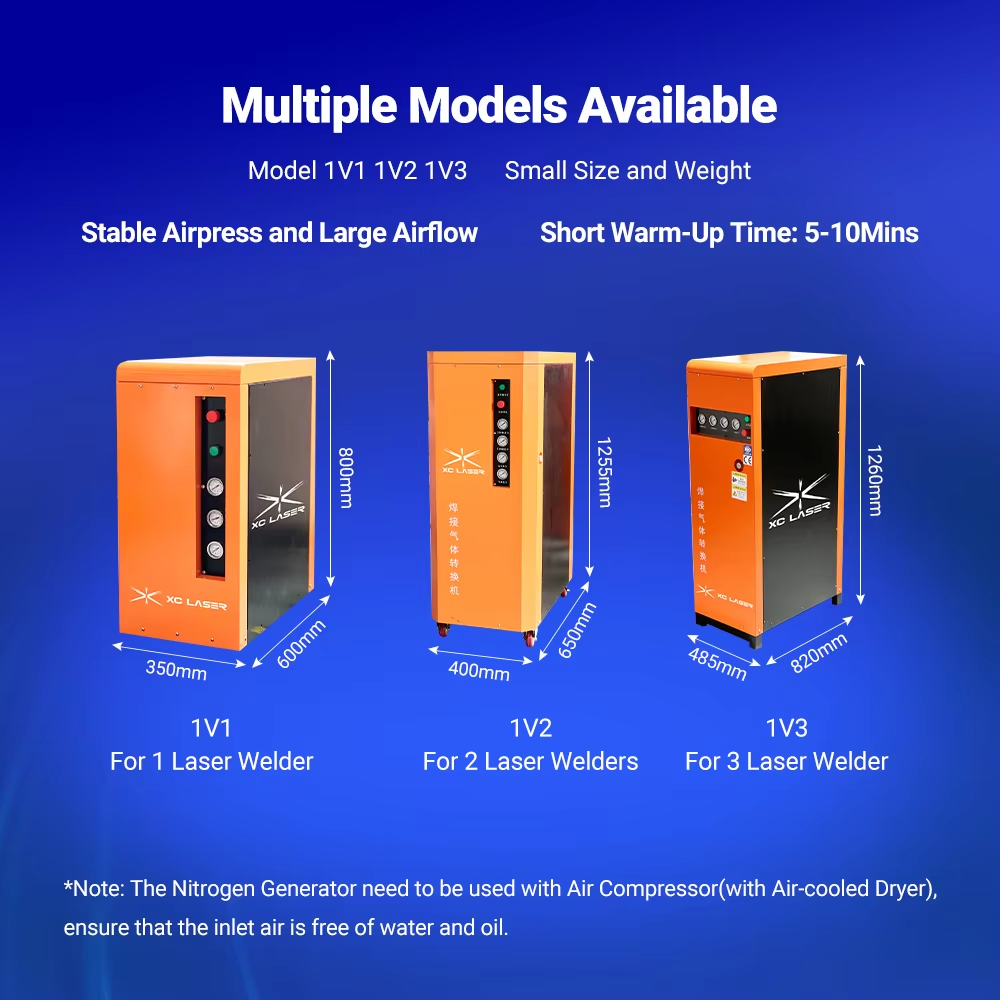

Nitrogen Generator Model
aa5b3ea6-13cf-4d9d-b5cf-8040ae6ec4f8
WPS拼图3
2e73ac8e-59c3-4191-9c52-25568408a4b2
Jinan Xing Chuang Laser Equipment Co., Ltd (XC-Laser) ,located in Jinan City , China's largest laser equipment manufacturing base.
With over 15 years of experiences , we now specialize in the research, design, and production of laser equipment, and mainly focus on Laser Cutting Machine and Laser Welding Machine .
With own R&D team , metal processing workshop and assebly worshop , from the very begining of the machine design to final assemble , all details under our own control .
We also offer different configrutions of the machine to meet clients' devers needs and different markets .
We have CE , ISO ect. certificate and offer OEM ODM services
XC-Laser , is a laser equipment manufacturer you can trust.
Our factory
Exhibition
Certificate
We provide our products with CE, FDA and other certifications, and we hold multiple patents.
