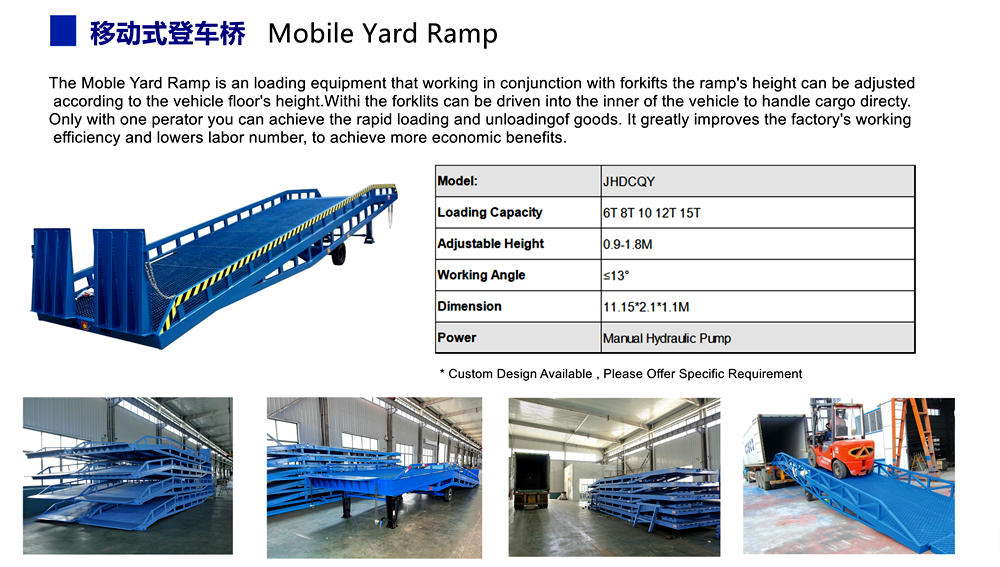

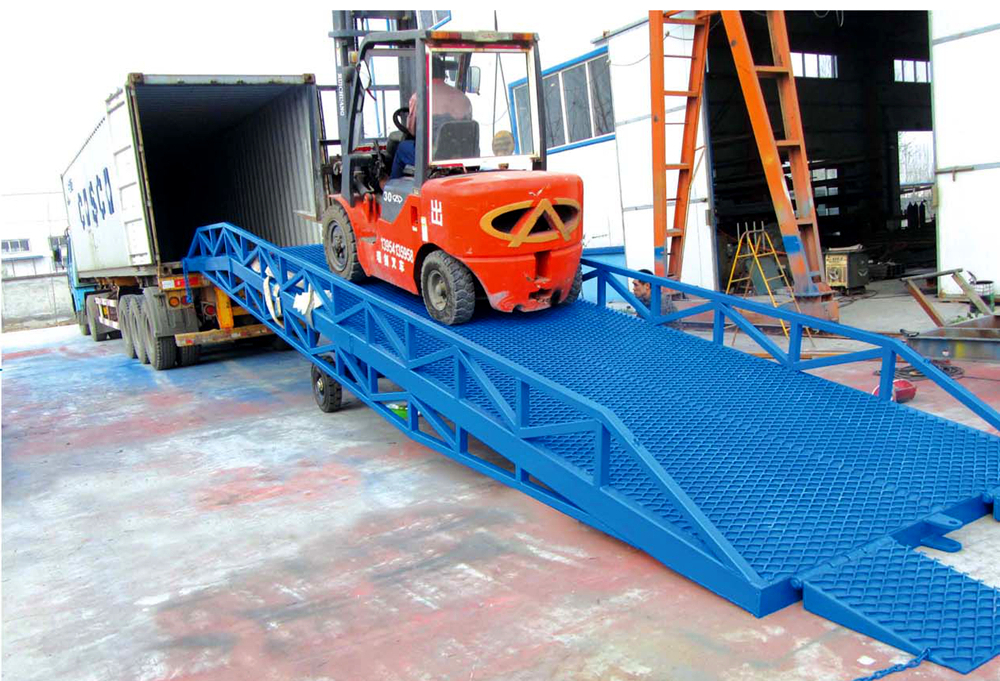

The Moble Yard Ramp is an loading equipment that working in conjunction with forkifts the ramp's height can be adjustedaccording to the vehicle floor's height.Withi the forkits can be driven into the inner of the vehicle to handle cargo directy.Only with one perator you can achieve the rapid loading and unloadingof goods. It greatly improves the factory's workingefficiency and lowers labor number, to achieve more economic benefits.
Inquire
Product Specifications
| Model: | JHDCQY | |
| Loading Capacity | 6T 8T 10 12T 15T | |
| Adjustable Height | 0.9-1.8M | |
| Working Angle | ≤13° | |
| Dimension | 11.15*2.1*1.1M | |
| Power | Manual Hydraulic Pump |
